Create Concentric Circles in PowerPoint Easily

Home > All 2010 2007 Tutorials > Shapes > Concentric Circles in PowerPoint

Discover a super easy way to create concentric circles using SmartArt tool. Follow our simple step by step instructions to create this useful diagram.

Usefulness of concentric circles in PowerPoint:

Concentric circles are extremely useful to create a whole range of business graphics. Whether it is target diagram, circular maze or ripple effect diagram – concentric circles form the base for a whole range of diagrams. In this article, you will learn to create concentric circles using SmartArt tool. Let us learn to create the graphic in a step by step way.

Start with a relevant graphic

The Stacked Venn is the closest to the result we want.

So, go to Insert -> SmartArt -> Relationship -> Stacked Venn.

Stacked Venn Smartart

This is the graphic we will use to create concentric circles. The default option has 4 circles in the graphic. If you want to add more circles, you can go to text pane and press ‘Enter’ a couple of times,

Add More Text

Modify it to suit your requirement

The next step is to get this diagram out of the confines of SmartArt tool. Click anywhere on the graphic and press ‘Ctrl + A’.  This selects all the elements of the graphic. Press ‘Ctrl +X’ to cut the elements selected. Now, you will be left with just the bounding box. Click on the box and delete it. Now, press ‘Ctrl +V’ to paste the elements you cut earlier. You will get an editable graphic as follows:

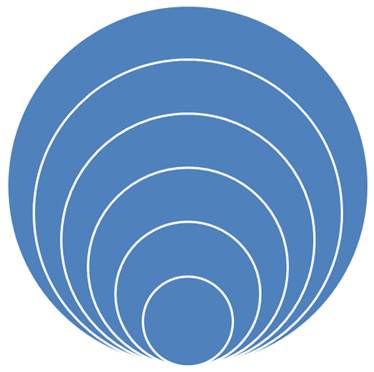

Venn Diagram

You can’t align the graphic yet. First you need to remove the hidden text boxes in the graphic. So, select all the elements, right click -> Group -> Ungroup the Stacked Venn diagram.

Ungroup Graphic

Click on the empty space in the slide to unselect the current selection. Now, move the cursor along the centre of the circles. This will help you select all the text boxes as shown below:

Delete Text Boxes

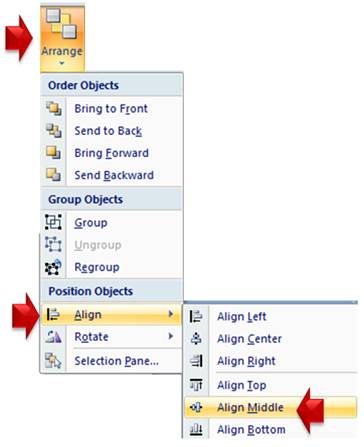

Delete all the text boxes selected. The next step is to align all the circles into concentric circles. For this, go to ‘Arrange’ tab in PowerPoint ribbon. Go to Align -> Align Middle:

This will create the following concentric circles in PowerPoint:

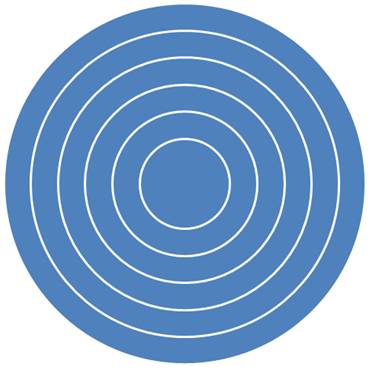

Concentric Circles in PowerPoint

Applications of concentric circles in PowerPoint:

We wish to show you some applications of concentric circles in PowerPoint. The diagram templates are taken from our ‘PowerPoint Charts and Diagram Templates packs for CEOs’. Here are the examples:

Ripple effects created using concentric circles:

Ripple effects from CEO Pack 1

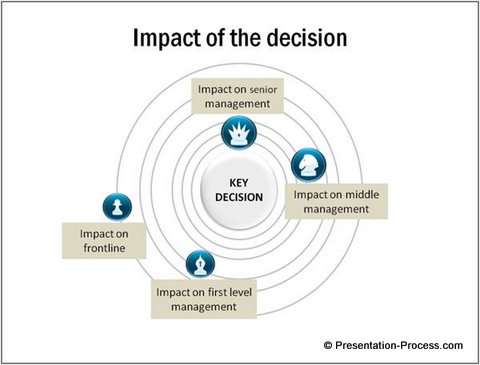

Impact of a strategic decision on various levels of management:

strategic decision on various levels of management:

Variation of the Impact diagram with different type of design elements:

More Strategy Diagrams from CEO Pack 1>>

Impact diagram with different type of design elements:

Target Diagram Template from CEO Pack 2:

When you use good quality graphs like the ones you saw in this article, you create a lasting impact on your audience’s mind. However, you may not always have the time to create such professional graphics yourself. That is why we came up with our PowerPoint Charts and Diagrams templates pack for CEOs.

About CEO Pack Bundle:

The pack has more than 1600 premium charts, graphs, graphics and diagrams to help you visualize every business idea imaginable. All the templates in the pack are fully editable. Just choose the template that matches your idea, replace the sample text with your own text and your business presentations get ready in no time.

To Conclude...

If you liked this tutorial, you can find many more such shortcuts to creating diagrams in this site. You can find 170+ Tutorials in this section.

Related: 3D Interesting Circle in PowerPoint

Return to Main Shapes in PowerPoint Page


Return to Top of Concentric Circles in PowerPoint Page
